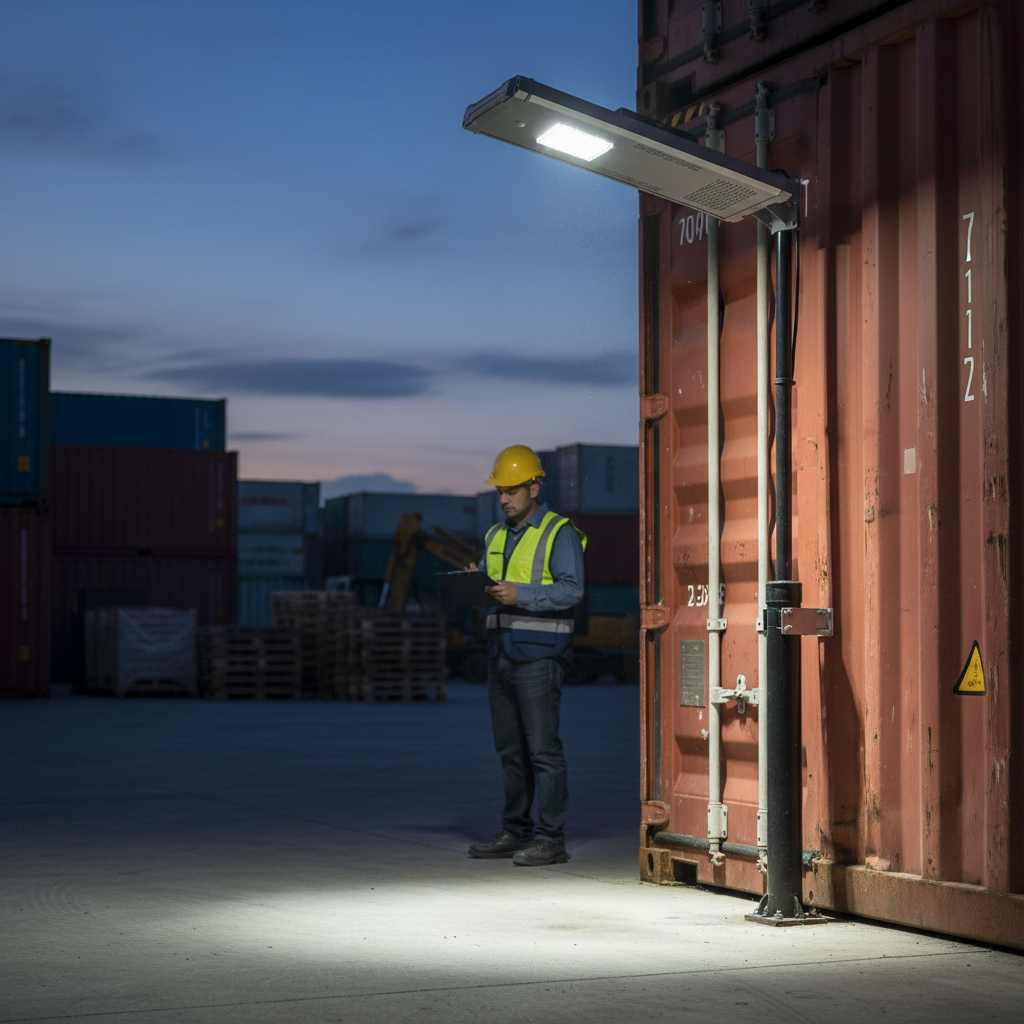

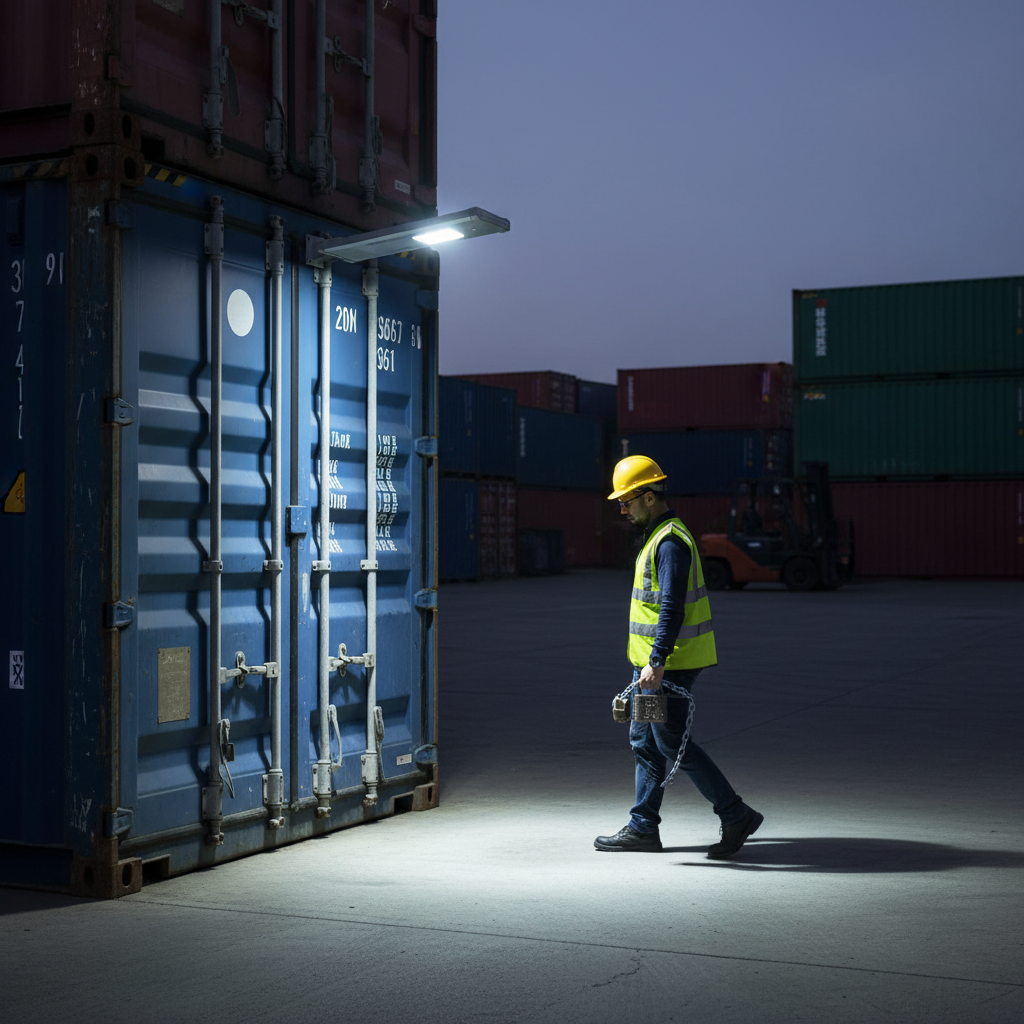

Premium 20W PIR Solar Floodlight with Remote Control and Adjustable Timer for Outdoor Use

Product Overview

The Premium 20W PIR Solar Floodlight is designed to provide efficient and reliable outdoor lighting. Equipped with a powerful LED lamp, this solar floodlight features remote control functionality for added convenience.

Mounting Options

Choose your preferred mounting method:

• Surface Mount: Attach the solar light securely using lag bolts.
• Post Mount: Use the provided bracket to secure the fixture housing over a pipe, adjusting to your desired height and position.
• To activate, turn the light to the "ON" position by pressing the power button.

Technical Specifications

• Solar Panel: Mono Crystalline
• Battery: LiFePO4 battery pack 12.8V 12AH
• LED Lamp: 20W, 6000K
• Charge Time: 8 hours under peak sunshine
• Power Button: Push down for Auto/on; push up to turn off.
• Infrared Sensor: Detects motion at a distance of 5-10 meters with an angle of detection less than 140 degrees.

Remote Control Features

• Power Button: ON/OFF functionality
• Dimming: Adjust brightness using the dimmer feature.
• Work Modes: Three operational modes (T1, T2, T3) for customized lighting.

Timer Settings

The floodlight offers three adjustable timer settings under M1 or M2 work mode:

• T1: Bright mode for 90 seconds
• T2: Bright mode for 180 seconds
• T3: Bright mode for 240 seconds

Work Modes

• M1: Low power standby, activates bright mode (1300 lumen) upon motion detection.
• M2: Continuous bright mode (2500 lumen) until motion is sensed.
• M3: Low power mode (300 lumen) until battery is depleted.

Installation Guidelines

• Recommended Height: Mounting height of 3-5 meters.
• Distance Between Lights: 12-20 meters apart for optimal coverage.

Cautionary Notes

• Ensure the solar panel is unobstructed by buildings or trees for optimal sunlight exposure year-round.
• Initially, the battery may not hold a charge for long due to self-discharge during testing. If this occurs, turn off the switch and place the solar panel in direct sunlight for 1-2 days to recharge.
• Detection distance may be reduced in warmer ambient temperatures.
• The total lighting time is contingent on full sunlight and correct placement. Performance may vary during winter or cloudy conditions.
• Avoid opening or repairing the unit without professional assistance.

FAQ

• Q: How long does it take to charge the battery?
  A: The battery requires approximately 8 hours of direct sunlight for a full charge.
• Q: What is the maximum detection distance?
  A: The infrared sensor can detect motion at distances between 5 to 10 meters.
• Q: Can I adjust the brightness?
  A: Yes, the remote control features a dimmer function for brightness adjustment.
